TIM PWM GENERATION BLOCK

This block supports PWM signal generation by Timer peripheral on STM microcontrollers.

Contents

• Inputs
• Outputs
• Block parameters
• CubeMX settings

Inputs

• CHx [%] – duty of the PWM signal on channel x to be generated
• Period [sec] – period of the PWM signals

Outputs

None

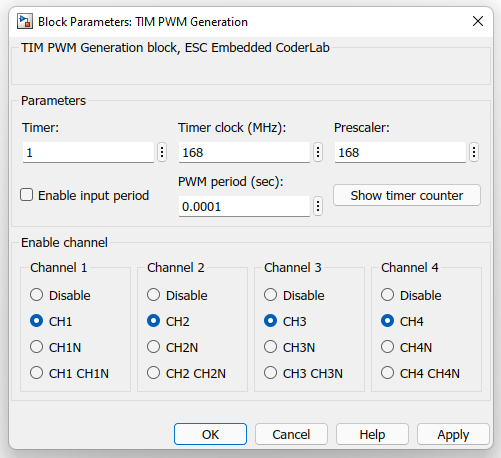

Block parameters

• Timer – number of timer peripheral
• Timer clock (MHz) – timer base clock
• Prescaler – timer clock prescale (timer clock is base/prescaler)
• PWM Period (sec) – period of the PWM signals to be generated
• Enable channel: Channel x – options for timer output channels activation (disabled/positive polarity/negative polarity/both polarity)

CubeMX settings

• Timers->TIMx->Clock Source->Internal clock
• Timers->TIMx->NVIC Settings Tab->TIMx global interrupt/TIMx update interrupt
• Timers->TIMx->Channelx->PWM Generation y for enabled channels where y is chosen mode (CHx/CHxN/CHx CHxN)
