TIM IRQ BLOCK

This block supports IRQ generation by Timer peripheral on STM microcontrollers.

Contents

• Inputs
• Outputs
• Block parameters
• CubeMX settings

Inputs

None

Outputs

• IRQ – interrupt signal

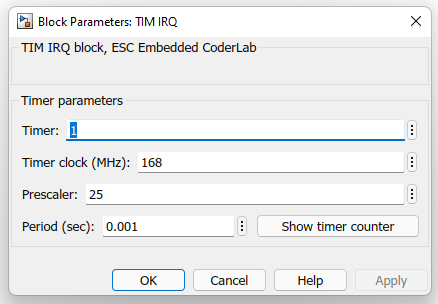

Block parameters

• Timer – number of timer peripheral
• Timer clock (MHz) – timer base clock
• Prescaler – timer clock prescale (timer clock is base/prescaler)
• Period (sec) – time interval of IRQ generation

CubeMX settings

• Timers->TIMx->Clock Source->Internal clock
• Timers->TIMx->NVIC Settings Tab->TIMx global interrupt/TIMx update interrupt
