GPIO Read Pin block

This block implements GPIO Write Pin functionality.

Contents

• GPIO Read Pin display
• GPIO Read Pin parameters
• Inputs
• Outputs
• CubeMX settings

GPIO Read Pin display

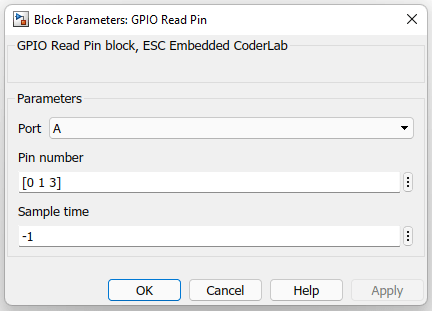

GPIO Read Pin parameters

• Port – port of pin to be read
• Pin number – number of pin to be read (supports multiple pins in brackets [])

Inputs

None

Outputs

• PIN_PORT|PIN_NUMBER – pin state to be read from particular pin

CubeMX settings

• Set pins as GPIO_Input
