FLASH Write BLOCK

This block supports FLASH write functionality on STM microcontrollers.

Contents

• Inputs
• Outputs
• Block parameters
• CubeMX settings

Inputs

• Address – Address in flash memory space to write data to
• Data – Data to write

Outputs

• Status – Flash write operation status

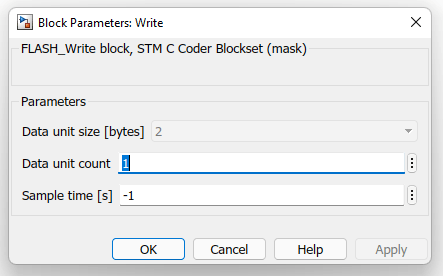

Block parameters

• Data unit size [bytes] – single flash write unit size in bytes (availability depends on MCU)
• Data unit count – number of single flash write units to write
• Sample time [s] – period of function refreshing (-1 means that a particular block takes sample time from its input block or if it doesn’t have any input block it takes the fastest sample time in a model)

CubeMX settings

• None
