Delay BLOCK

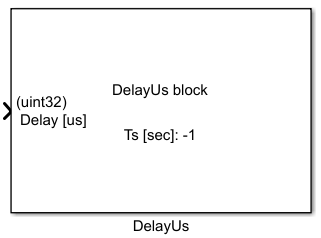

This block supports microsecond-precise delay functionality on STM microcontrollers.

Contents

• Inputs
• Outputs
• Block parameters
• CubeMX settings

Inputs

• Delay [us] – Delay time in [us]

Outputs

None

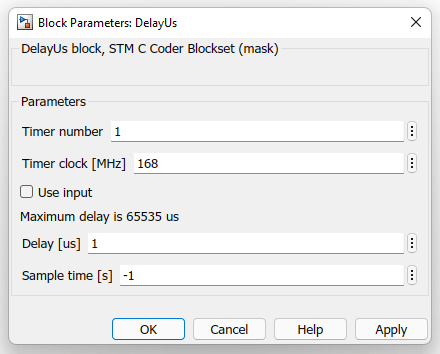

Block parameters

• Timer number – timer peripheral index used for delay implementation
• Timer clock [MHz] – timer base clock
• Use input – option to use delay value from system or predefined value
• Delay [us] – predefined delay interval in [us]
• Sample time [s] – period of function refreshing (-1 means that a particular block takes sample time from its input block or if it doesn’t have any input block it takes the fastest sample time in a model)

CubeMX settings

• Middleware and Software Packs->FREERTOS->Interface->Disable
• Timers->TIMx->Clocku Source->Internal Clock
