CAN Tx

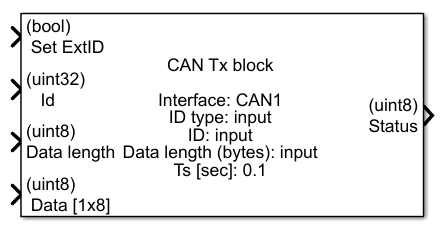

CAN Tx block

This block implements receiving data by CAN interface on STM microcontrollers.

Contents

Inputs

  • Set ExtID – option to set Extended ID mode
  • Id – Frame Id to send
  • Data length – length of data to send
  • Data – data to send

Outputs

  • Status – status of operation (1 – message sent correctly)

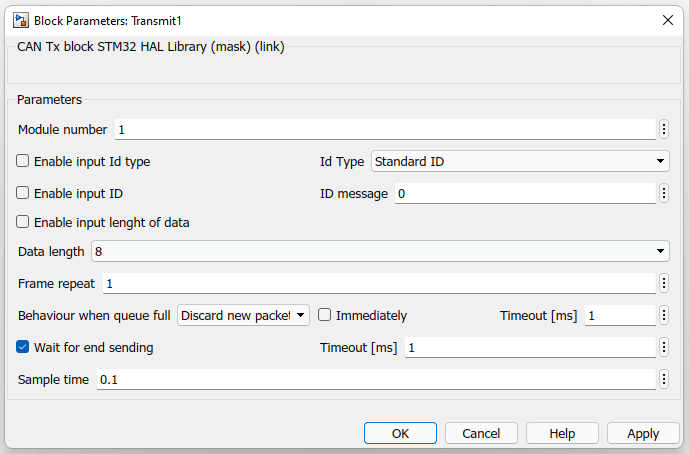

Block parameters

  • Module number – number of CAN module used in model
  • Enable input Id type – option to set Id mode via input
  • Enable input Id – option to set Id via input
  • Enable input length of data – option to set data length via input
  • Id Type – type of frame Id to send
  • ID message – frame Id to send
  • Data length – data length to send
  • Frame repeat – number of send repetitions
  • Behaviour when queue full – determines what to do when tx queue is full (discard new/discard oldest/discard latest)
  • Immediately – when unchecked, wait for tx queue free slot until timeout
  • Timeout [ms] – timeout to reach when awaiting tx queue free slot
  • Wait for end sending – block execution until data tx is done or until timeout
  • Timeout [ms] – timeout to reach when awaiting tx done
  • Sample time – period of function refreshing (-1 means that a particular block takes sample time from its input block or if it doesn’t have any input block it takes the fastest sample time in a model)

CubeMX settings

  • Connectivity->CANx->Activated
  • Connectivity->CANx->Parameter Settings tab->Transmit Fifo Priority Enable
  • Connectivity->CANx->Parameter Settings tab->Automatic Retransmission Enable
  • Connectivity->CANx->NVIC Settings tab->CANx TX interrupts enabled
